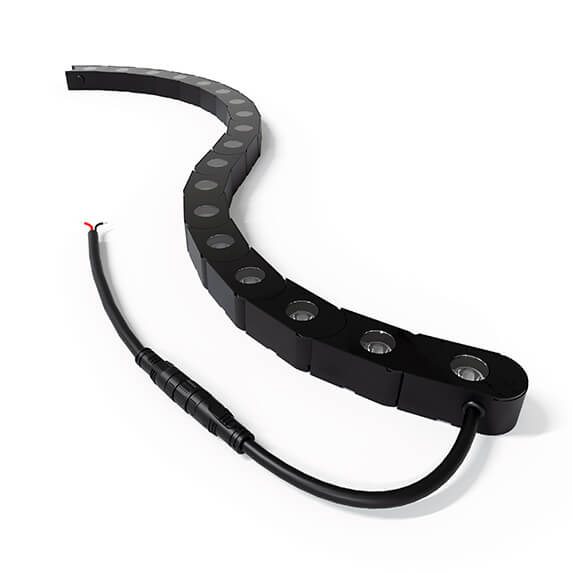

AFW01 DMX Pixel Flexible LED Wall Grazer
Input Voltage
24V DC
2200K(2238±102K)
Power Consumption
36W/m
2700K(2725±145K)
LED Count
18leds
3000K(3045±175K)
Cutting Unit
6leds
3500K(3465±245K)
Cutting Unit Length
333mm
4000K(3985±275K)
Housing Material
Aluminum +Tempered Glass Cover
4500K(4503±243K)
LED Source
SMD3030
5000K(5029±283K)
Max. Single Feed Length
2M
6500K(6532±510K)
Optional Lens
15°, 20°, 30°, 40°, 10°x 15°, 15°x 25°, 15°x 40°, 25°x 45°
Green(520-530nm)
Lumen Maintenance
70.000 Hours L70@25°C, 50.000 Hours L70@50°C
Blue(455-465nm)
Operating Tempertaure
-25°C to 50°C
IP Rating
IP67
Specification
Accessories
DWG Files
IES Files
Appendix
Wire Connector
2Pin Male Connector 2Pin Female Connector 5Pin Male Connector 5Pin Female Connector
2Pin Male & Female Connector 2+3Pin Male & Female Connector
Fix Bracket
ACC-FB-2830-C2
ACC-FB-T2
Shading Accessory
SA-007
